BO-UCH150F 150W Probe Sonicator | 5–150 mL

BO-UCH150F 150W Probe Sonicator | 5–150 mL

The LVOBO BO-UCH150F is the 150 W configuration in the BO-UCH-F probe sonicator series, designed for laboratory liquid sample processing from 5 to 150 mL with a suitable probe configuration. It has the lowest power rating and processing capacity in the series, supporting cell disruption, homogenization, dispersion and emulsification. A Φ3 mm titanium alloy probe is supplied as standard. The split-type system combines a separate touchscreen control unit with an enclosed sonication workspace and motorized sample lift. It shares the same enclosure and control-unit dimensions with the other BO-UCH-F models.

  • Número de artículo :

    BO-UCH150F
  • Pedido (MOQ) :

    1
  • Precio :

    $871
  • Origen del producto :

    China
  • Puerto de embarque :

    XiaMen
  • Plazo de entrega :

    7 Days
  • Peso :

    17KG
  • Pago :

    T/T

BO-UCH150F at a Glance

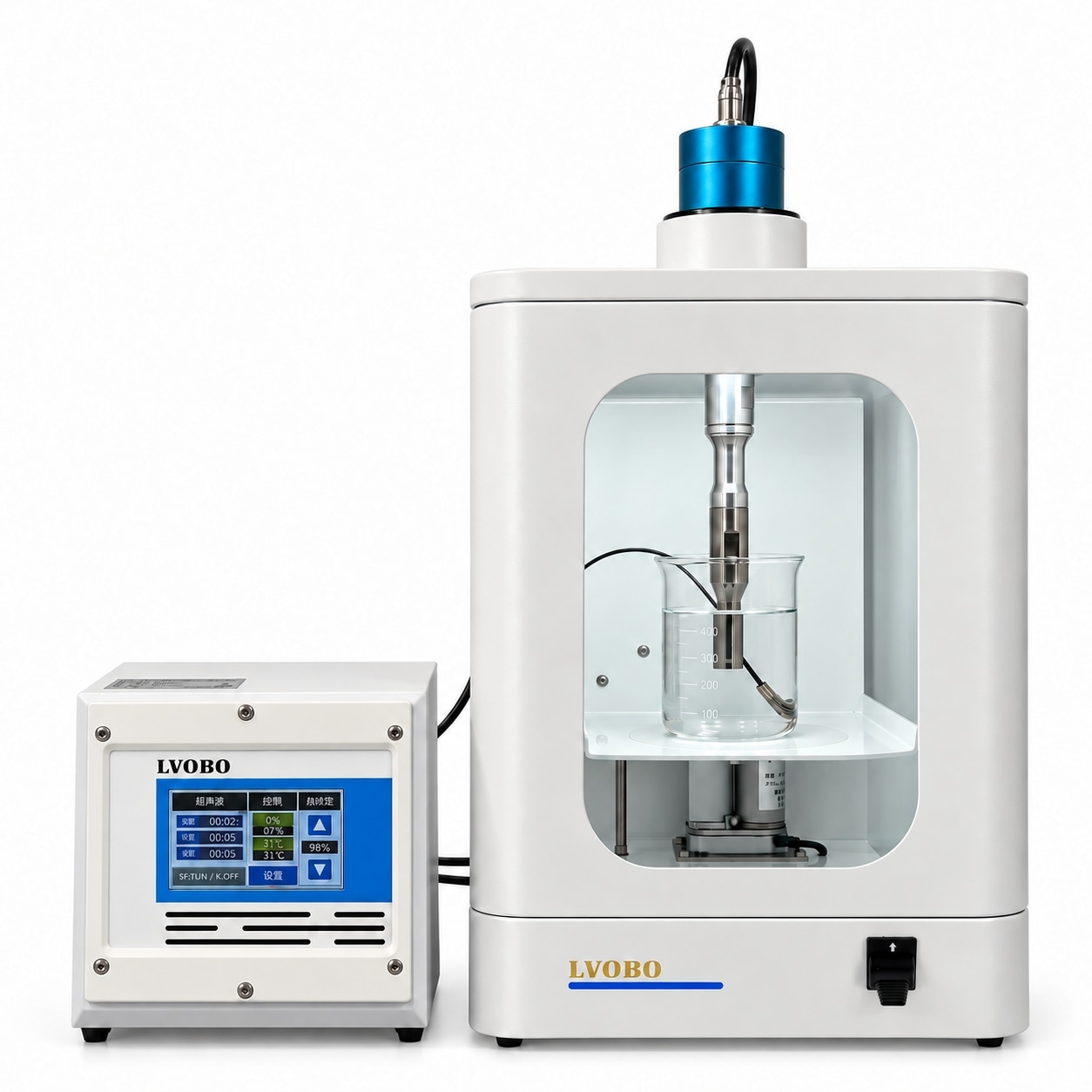

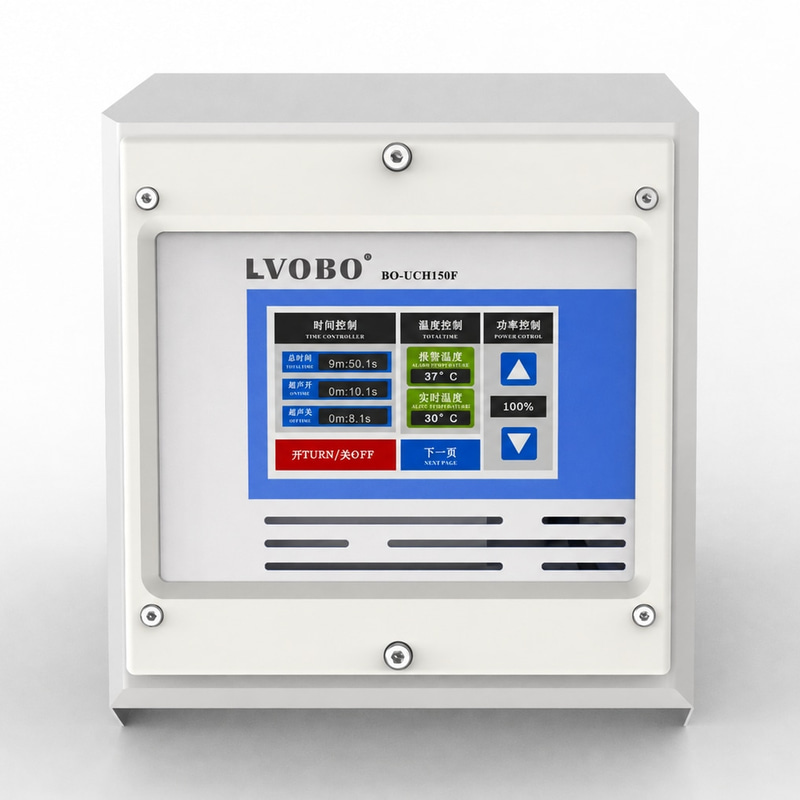

LVOBO BO-UCH-F shared enclosure and separate touchscreen ultrasonic generator

150 W

Ultrasonic Power

5–150 mL

Processing Range

Φ3 mm

Standard Probe

20–25 kHz

Ultrasonic Frequency

The 5–150 mL processing range requires a suitable probe configuration matched to the sample and vessel.

Why Choose the BO-UCH150F?

5–150 mL Processing Range

Designed for laboratory users working with sample volumes up to 150 mL with a suitable probe configuration.

150 W Ultrasonic Output

The lowest ultrasonic power configuration in the BO-UCH-F series, matched to the lower processing range of this model.

Φ3 mm Standard Probe

Supplied with a Φ3 mm titanium alloy probe, with Φ2 mm and Φ6 mm optional probe configurations available.

Same BO-UCH-F Platform

Uses the shared BO-UCH-F enclosure, dimensions and control platform, with the same core functions as higher-capacity models.

Probe Configuration

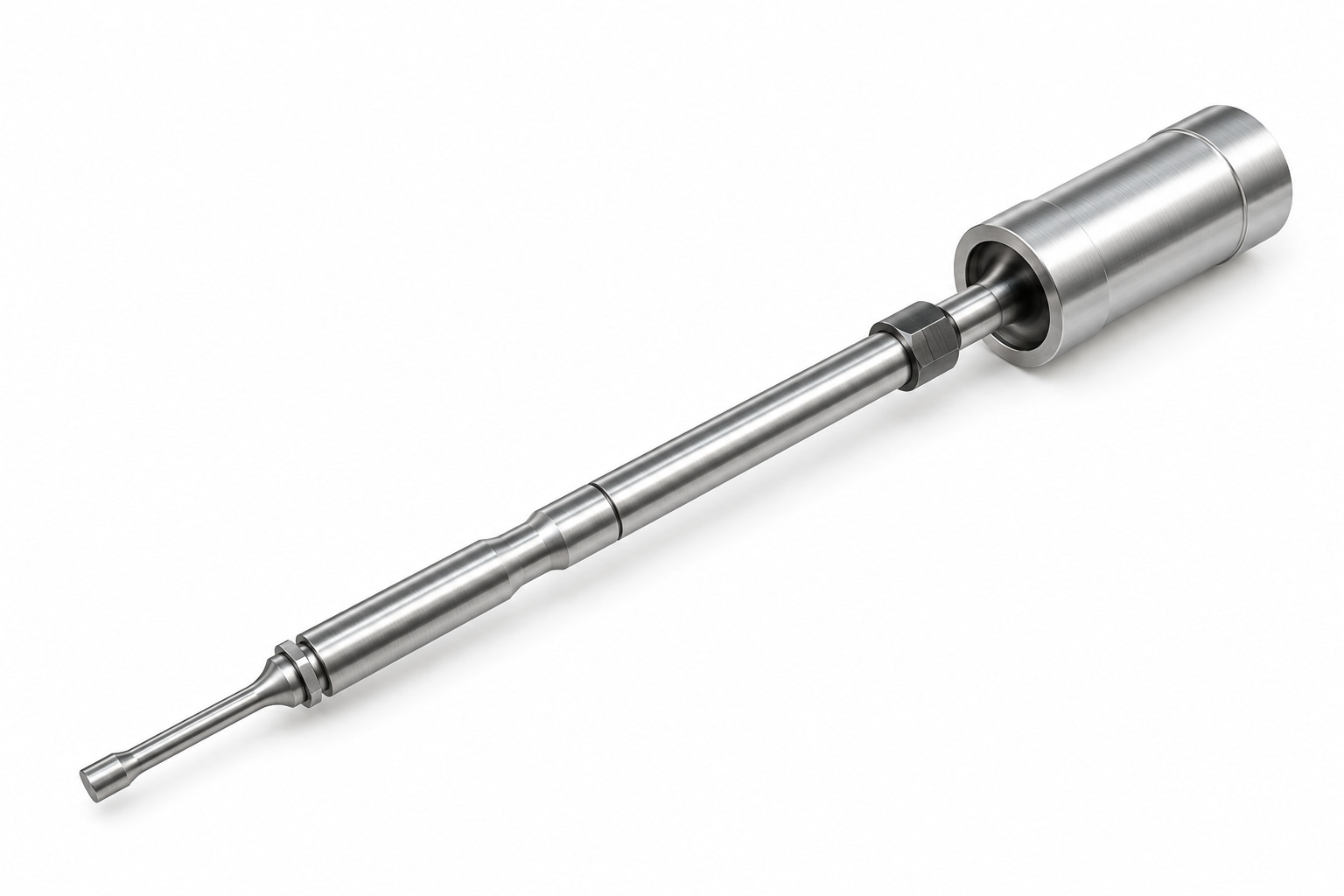

Actual BO-UCH-F probe assembly inside the sonication chamber
Shared probe assembly shown for reference; select the specified probe size.
Standard Probe Φ3 mm
Optional Probe Sizes Φ2 / Φ3 / Φ6 mm

Different titanium alloy probe diameters support different sample volumes, vessel geometries and processing requirements.

Need help selecting a probe?

Share your sample type, sample volume, vessel dimensions and application.

Technical Data

Parameter Specification
Model BO-UCH150F
Ultrasonic Power 150 W
Processing Range 5–150 mL
Power Adjustment 0–100%
Ultrasonic Frequency 20–25 kHz
Total Working Time 0–999 min
Output Time 0.1 s–999 min
Interval Time 0.1 s–999 min
Sonication Modes Continuous / Pulse / Intermittent
Display / Control Touchscreen
Motorized Sample Lift Yes
Probe Material Titanium Alloy
Standard Probe Φ3 mm
Optional Probe Sizes Φ2 / Φ3 / Φ6 mm
Temperature Monitoring Yes
Temperature Alarm Setting 0–99°C
Over-Temperature Alarm Automatic alarm when the configured temperature limit is reached
Program / Recipe Memory Yes
Overload Protection Yes
Acoustic Enclosure External Dimensions 360 × 360 × 520 mm
Acoustic Enclosure Internal Dimensions 350 × 350 × 420 mm
Ultrasonic Generator / Control Unit Dimensions 176 × 176 × 220 mm
Net Weight 17 kg
Power Supply AC 100–240 V, 50/60 Hz

Processing range depends on a suitable probe configuration and the sample and vessel requirements.

Product Dimensions

All BO-UCH-F models share the same enclosure and control-unit dimensions. Model selection is based primarily on ultrasonic power, processing range and probe configuration rather than machine size.

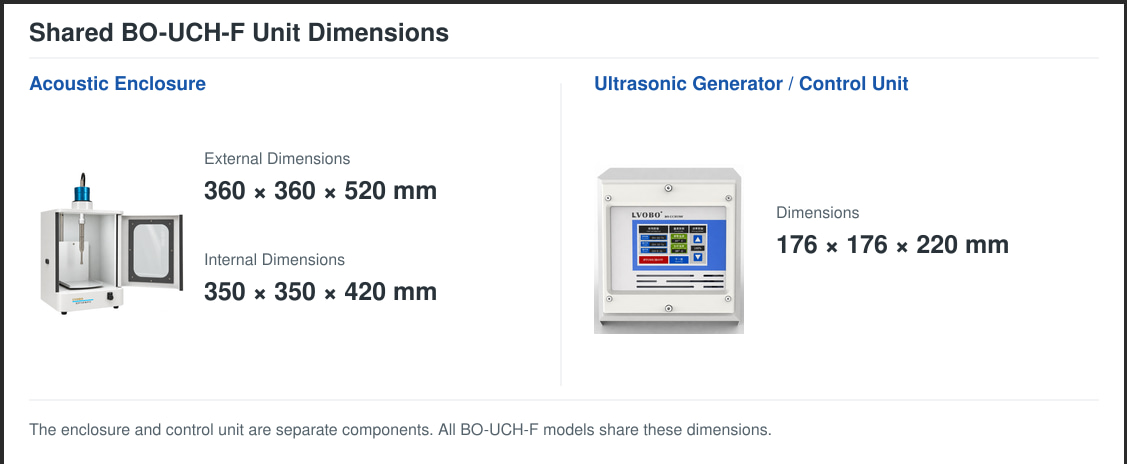

Separate BO-UCH-F units: enclosure external 360 × 360 × 520 mm, internal 350 × 350 × 420 mm; generator/control unit 176 × 176 × 220 mm



Typical Applications

  • Cell Disruption and Cell Lysis: Biological research sample preparation.
  • Homogenization: Processing of liquid mixtures and suspensions.
  • Emulsification: Dispersion of one liquid phase within another.
  • Dispersion: Preparation of particle and powder suspensions.
  • Ultrasonic-Assisted Extraction: Extraction of compounds into a liquid medium.
  • Laboratory Sample Preparation: Preparation before experiments or analysis.

These are common examples. Application suitability depends on sample characteristics, processing volume, vessel geometry and probe configuration.

Explore more BO-UCH-F applications →

Frequently Asked Questions

What processing range does the BO-UCH150F support?

The BO-UCH150F supports a 5–150 mL processing range with a suitable probe configuration.

What probe is supplied with the BO-UCH150F?

A Φ3 mm titanium alloy probe is supplied as the standard configuration.

What optional probe sizes are available?

Φ2 mm, Φ3 mm and Φ6 mm probe options are available for the BO-UCH150F.

Is the BO-UCH150F physically smaller than the BO-UCH300F or BO-UCH500F?

No. The BO-UCH-F models share the same enclosure and control-unit dimensions. The main differences between models are ultrasonic power, processing range and probe configuration.

What is the difference between BO-UCH150F and BO-UCH300F?

BO-UCH150F has 150 W ultrasonic power, a 5–150 mL processing range and a Φ3 mm standard probe. BO-UCH300F has 250 W ultrasonic power, a 5–300 mL processing range and a Φ6 mm standard probe.

Need Help Choosing the Right BO-UCH-F Model?

Share your sample type, sample volume, vessel dimensions and intended application. LVOBO can help recommend a suitable model and probe configuration.

WhatsApp: +86 13235024070

dejar un mensaje
Si está interesado en nuestros productos y desea conocer más detalles, deje un mensaje aquí, le responderemos lo antes posible.

Productos relacionados

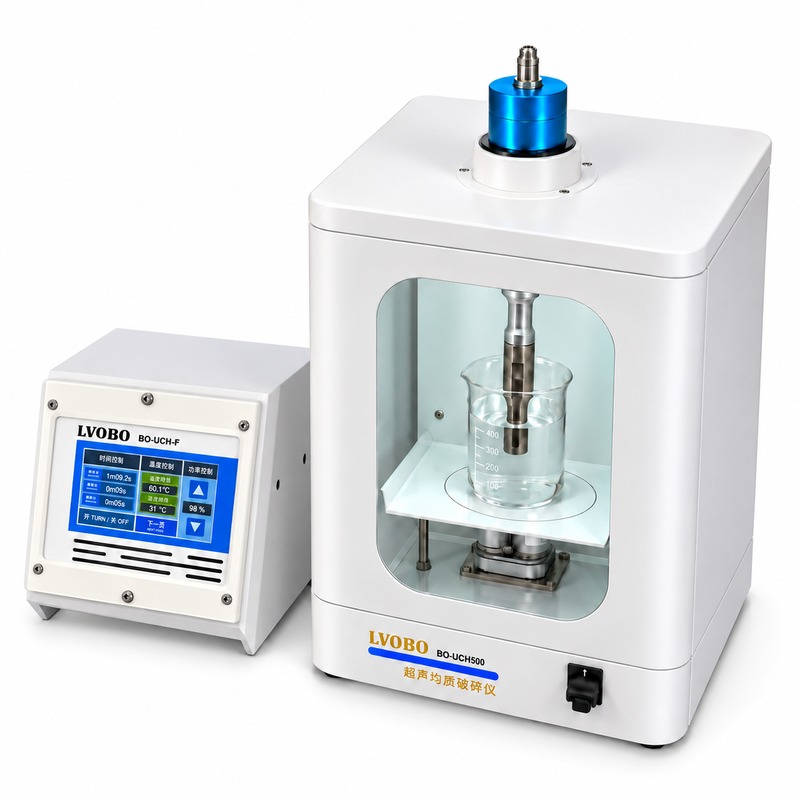

BO-UCH1200F 1000W Probe Sonicator |5-1200 mL
BO-UCH1200F 1000W Probe Sonicator |5-1200 mL

The LVOBO BO-UCH1200F is a 1000 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–1200 mL with suitable probe configurations and includes a standard Φ16 mm titanium alloy probe. The split-type system combines touchscreen control, an enclosed sonication chamber and a motorized sample lift. Adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm enable flexible control for various laboratory applications.

Detalles
BO-UCH1000F 800W probe sonicator with acoustic enclosure and touchscreen controller
BO-UCH1000F 800W Probe Sonicator |5-1000 mL

The LVOBO BO-UCH1000F is an 800 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–1000 mL with suitable probe configurations and includes a standard Φ13 mm titanium alloy probe. The split-type system features a separate touchscreen controller, an enclosed sonication chamber and a motorized sample lift. Adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm provide flexible control for different laboratory processing requirements.

Detalles
BO-UCH800F 600W probe sonicator with acoustic enclosure and separate touchscreen controller
BO-UCH800F 600W Probe Sonicator |5-800 mL

The LVOBO BO-UCH800F is a 600 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–800 mL with suitable probe configurations, including a standard Φ10 mm titanium alloy probe. The split-type system features touchscreen control, an enclosed sonication chamber and a motorized sample lift. With adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm, the BO-UCH800F provides flexible control for laboratory ultrasonic processing.

Detalles

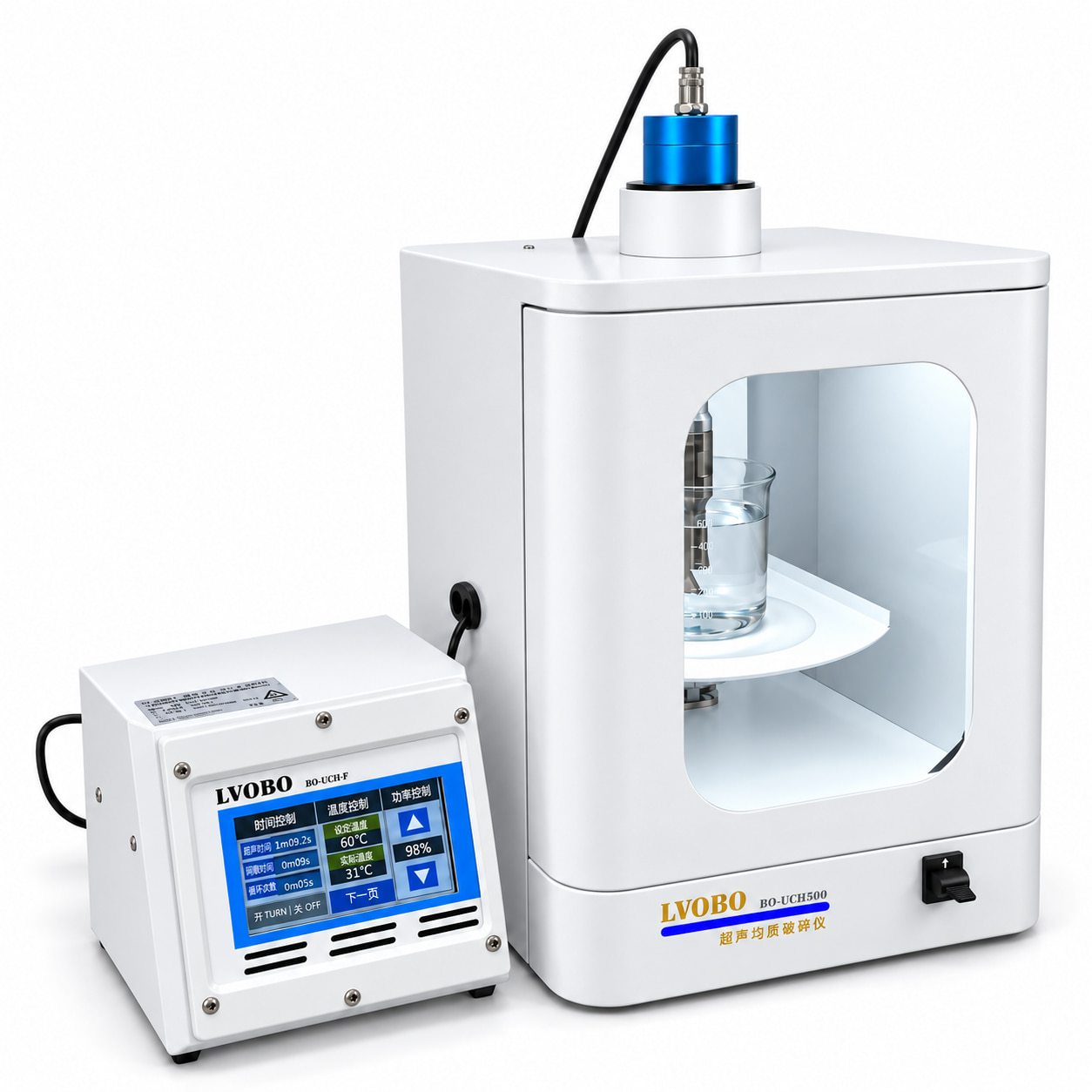

Enclosed ultrasonic sonication chamber with motorized sample platform
BO-UCH500F 350W Probe Sonicator |5-500 mL

The LVOBO BO-UCH500F is a 350 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–500 mL with suitable probe configurations, including a standard Φ8 mm titanium alloy probe. The split-type system features touchscreen control, an enclosed sonication chamber and a motorized sample lift. With adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm, the BO-UCH500F provides flexible control for laboratory ultrasonic processing.

Detalles

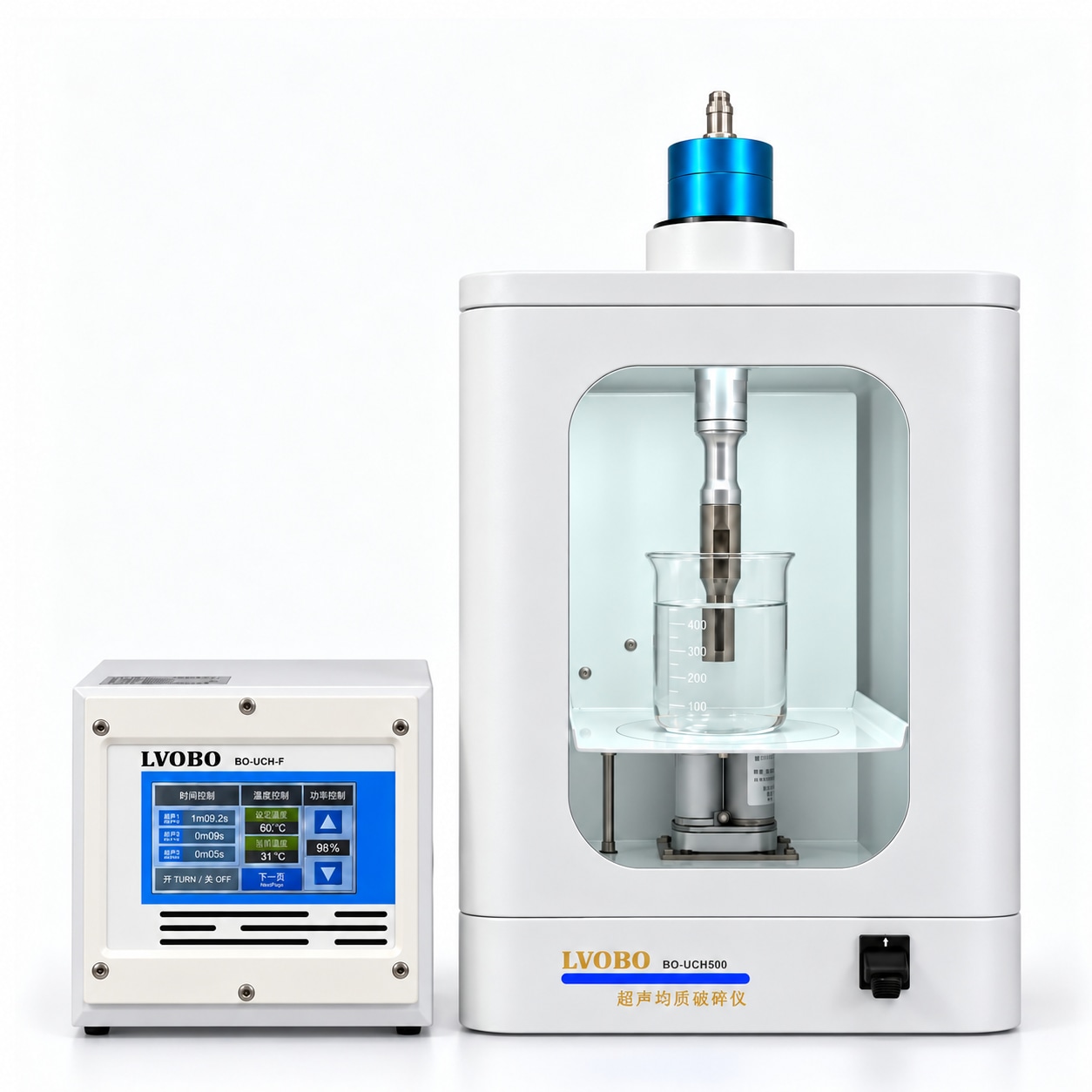

BO-UCH300F 250W probe sonicator with acoustic enclosure and touchscreen controller
BO-UCH300F 250W Probe Sonicator | 5-300 mL

The LVOBO BO-UCH300F is a 250 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports 5–300 mL processing volumes with suitable probe configurations, including a standard Φ6 mm titanium alloy probe. The split-type system combines touchscreen control, an enclosed sonication chamber and a motorized sample lift. With adjustable ultrasonic power, continuous and pulse operation, temperature monitoring and alarm functions, the BO-UCH300F provides flexible control for laboratory ultrasonic processing.

Detalles
BO-UCH150F 150W probe sonicator with acoustic enclosure
BO-UCH150F 150W Probe Sonicator | 5–150 mL

The LVOBO BO-UCH150F is the 150 W configuration in the BO-UCH-F probe sonicator series, designed for laboratory liquid sample processing from 5 to 150 mL with a suitable probe configuration. It has the lowest power rating and processing capacity in the series, supporting cell disruption, homogenization, dispersion and emulsification. A Φ3 mm titanium alloy probe is supplied as standard. The split-type system combines a separate touchscreen control unit with an enclosed sonication workspace and motorized sample lift. It shares the same enclosure and control-unit dimensions with the other BO-UCH-F models.

Detalles

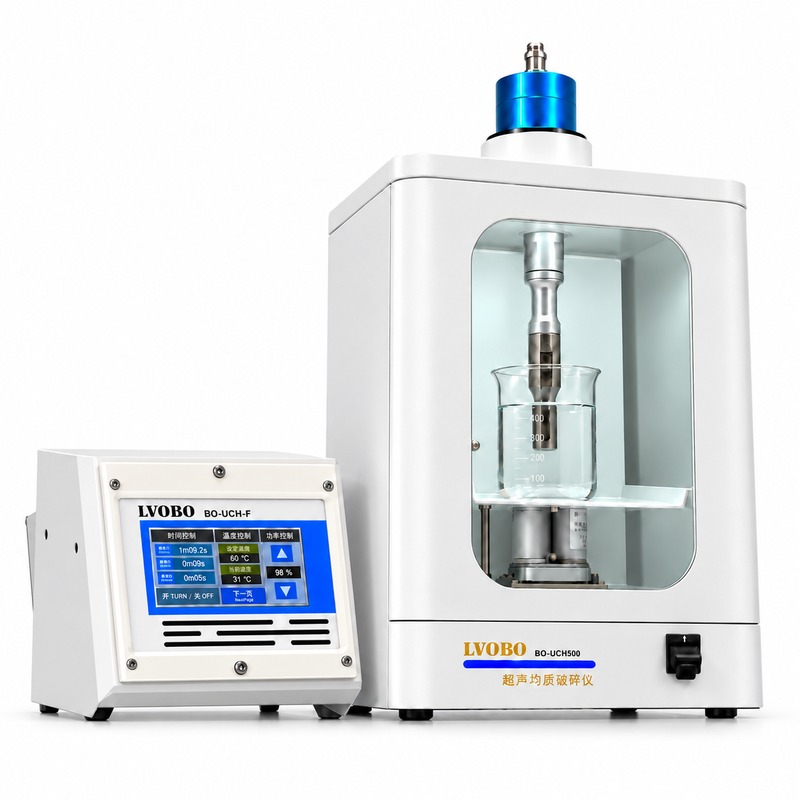

BO-UCH1200F 1000W probe sonicator with acoustic enclosure and separate touchscreen controller
