BO-UCH800F 600W Probe Sonicator |5-800 mL

BO-UCH800F 600W Probe Sonicator |5-800 mL

The LVOBO BO-UCH800F is a 600 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–800 mL with suitable probe configurations, including a standard Φ10 mm titanium alloy probe. The split-type system features touchscreen control, an enclosed sonication chamber and a motorized sample lift. With adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm, the BO-UCH800F provides flexible control for laboratory ultrasonic processing.

  • Número de artículo :

    BO-UCH800F
  • Pedido (MOQ) :

    1
  • Precio :

    $1393
  • Origen del producto :

    China
  • Puerto de embarque :

    XiaMen
  • Plazo de entrega :

    7Days
  • Peso :

    17KG
  • Pago :

    T/T

Why Choose the BO-UCH800F?

  • 600 W Ultrasonic Output

    Adjust ultrasonic power from 0–100% to suit the sample and processing task.

  • 5–800 mL Processing Range

    Process laboratory samples within this range using a suitable probe configuration selected for the sample and vessel.

  • Φ10 mm Standard Probe

    A titanium alloy probe is supplied as standard, with multiple optional diameters for different laboratory requirements.

  • Integrated Laboratory Workflow

    Combine touchscreen control, a motorized sample lift, an acoustic enclosure, Temperature Monitoring & Over-Temperature Alarm, and program / recipe memory.

Probe Configuration

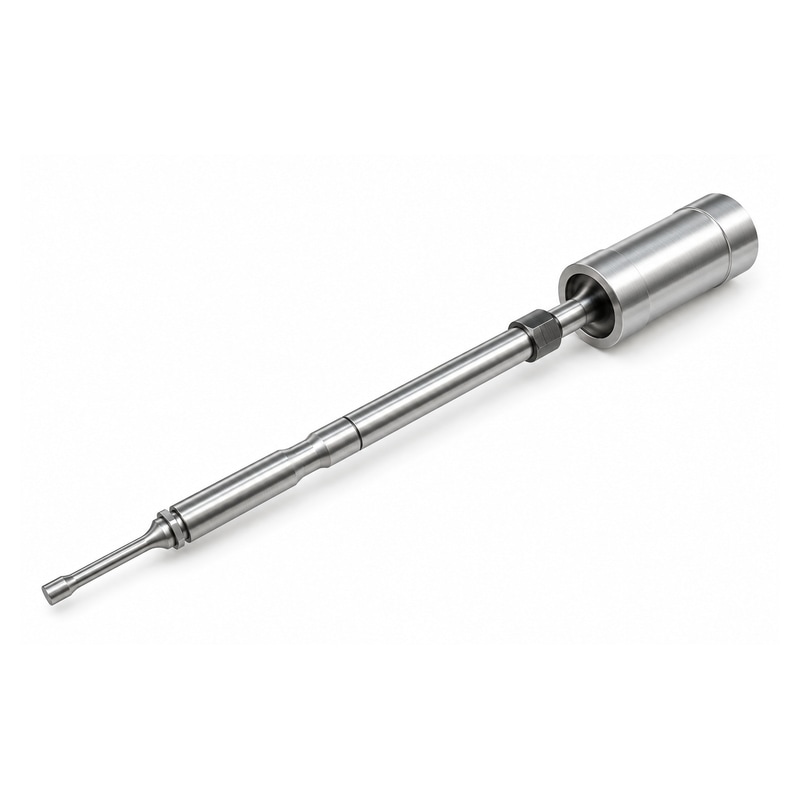

Ultrasonic probe and transducer assembly; diameter shown is not specified
Representative probe and transducer assembly; the pictured diameter is not specified.
Standard Probe
Φ10 mm titanium alloy
Optional Probes
Φ3 / Φ6 / Φ8 / Φ10 / Φ12 / Φ16 mm

Select a probe according to sample volume, vessel geometry, sample characteristics and intended application.

Technical Specifications

BO-UCH800F Specifications
Parameter Specification
Brand LVOBO
Model BO-UCH800F
Ultrasonic Power 600 W
Processing Range 5–800 mL
Standard Probe Φ10 mm
Optional Probes Φ3 / Φ6 / Φ8 / Φ10 / Φ12 / Φ16 mm
Probe Material Titanium Alloy
Ultrasonic Frequency 20–25 kHz
Power Adjustment 0–100%
Total Working Time 0–999 min
Output Time 0.1 s–999 min
Interval Time 0.1 s–999 min
Operating Modes Continuous / Pulse / Intermittent
Display / Control Touchscreen
Motorized Sample Lift Yes
Temperature Monitoring Yes
Temperature Alarm Setting 0–99°C
Over-Temperature Alarm Automatic alarm when the configured temperature limit is reached
Program / Recipe Memory Yes
Overload Protection Yes
Acoustic Enclosure External Dimensions 360 × 360 × 520 mm
Acoustic Enclosure Internal Dimensions 350 × 350 × 420 mm
Separate Control Unit Dimensions 176 × 176 × 220 mm
Net Weight 17 kg
Power Supply AC 100–240 V, 50/60 Hz

The 5–800 mL processing range requires a suitable probe configuration matched to the sample and vessel.

Key Operating Features

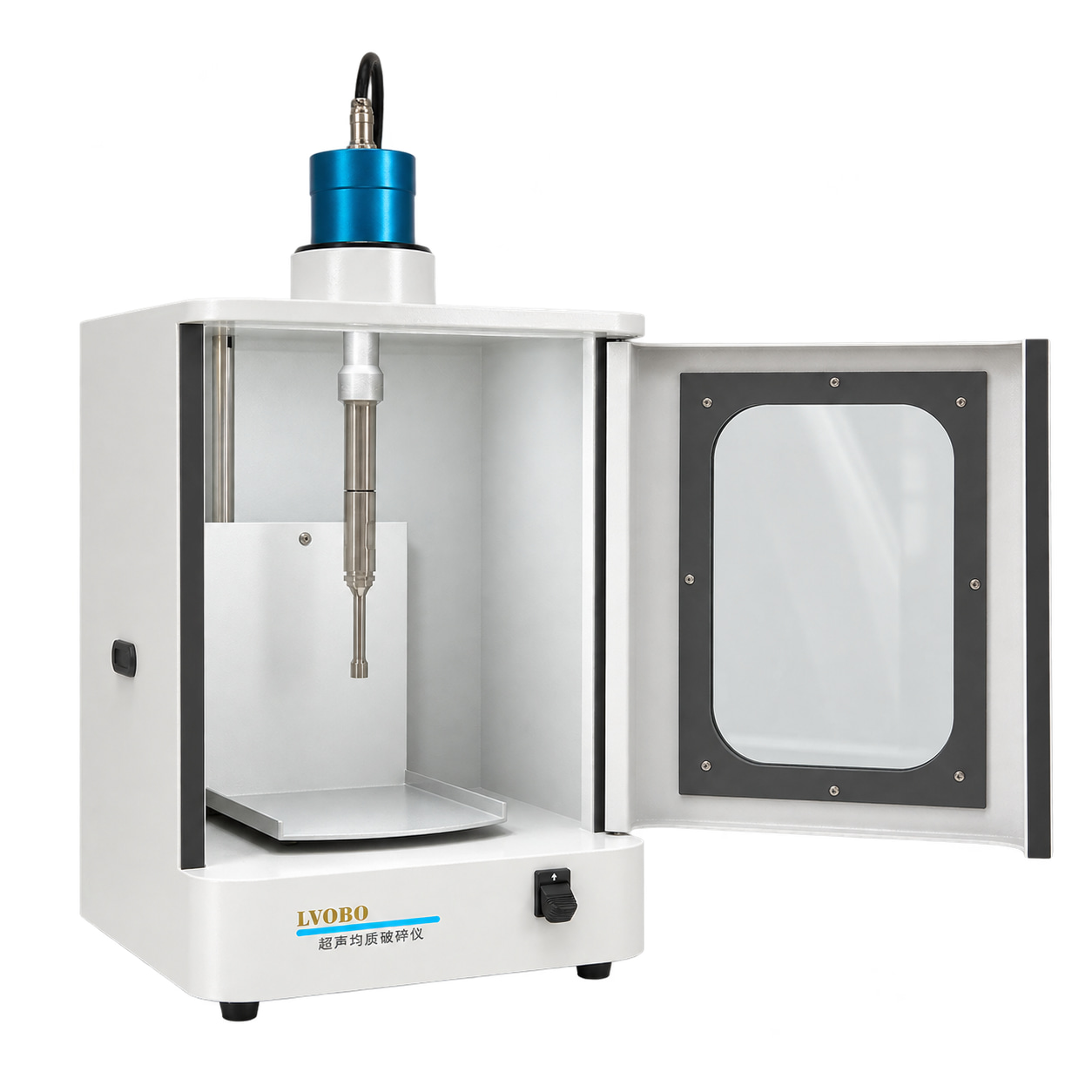

Open acoustic enclosure showing the probe and motorized sample platform

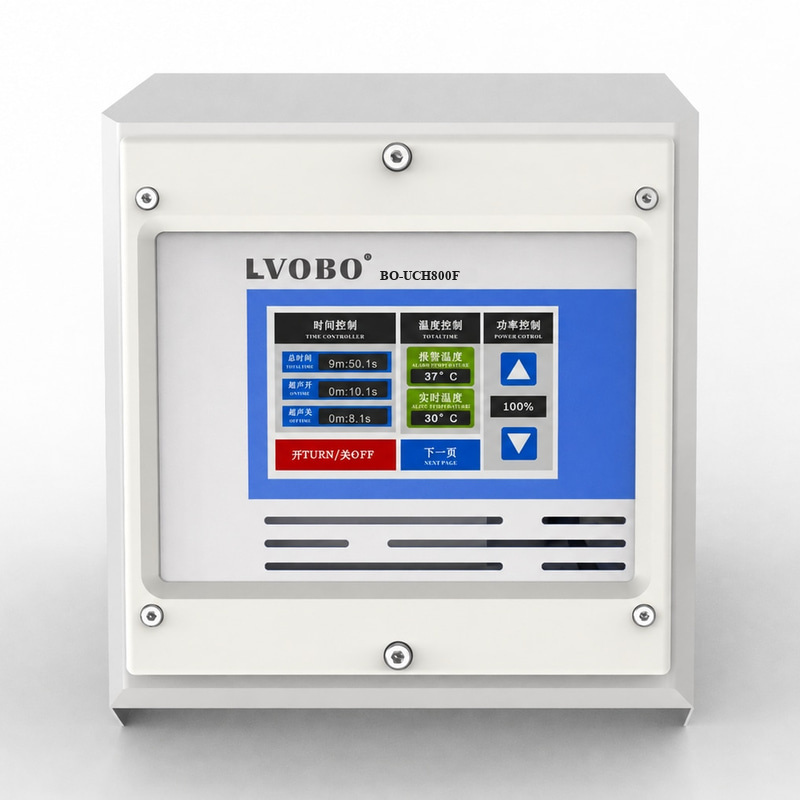

  • Touchscreen Control

    Set ultrasonic power, timing and operating parameters from the separate control unit.

  • Continuous & Pulse Sonication

    Use continuous output or alternate sonication and pause periods with output and interval settings.

  • Motorized Sample Lift

    Electrically raise or lower the platform to position the vessel beneath the probe.

  • Temperature Monitoring & Over-Temperature Alarm

    Monitor sample temperature and receive an automatic alarm when the configured temperature limit is reached.

  • Program / Recipe Memory

    Save and recall operating parameters for repeated laboratory procedures.

  • Overload Protection

    Includes overload protection for ultrasonic operation.

Typical Applications

Laboratory sample preparation and liquid-phase ultrasonic processing tasks include:

  • Cell Disruption and Cell Lysis: Disrupt cell suspensions for biological sample preparation in life science research.
  • Laboratory Homogenization: Promote a more uniform distribution within liquid samples and suspensions.
  • Ultrasonic Dispersion: Disperse particles and powders in liquid media for materials research.
  • Emulsification: Disperse one liquid phase within another for formulation research.
  • Ultrasonic-Assisted Extraction: Assist extraction from suitable sample materials into a liquid medium.
  • Laboratory Sample Preparation: Prepare liquid samples for subsequent experiments and analytical procedures.

These examples are not exhaustive. Suitability depends on the sample, vessel, processing conditions and selected probe.

Product Dimensions

The acoustic enclosure and control unit are separate components. Dimensions below refer to each component individually.

Acoustic Enclosure

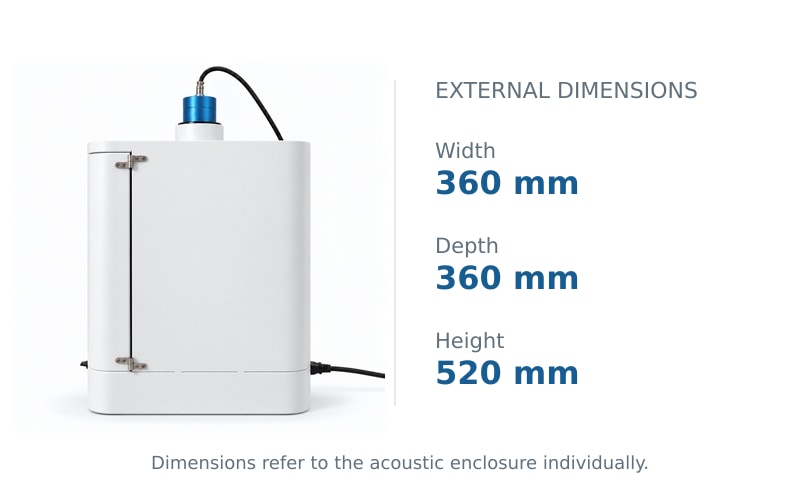

Acoustic enclosure external dimensions: width 360 mm, depth 360 mm, height 520 mm
External: 360 × 360 × 520 mm
Internal: 350 × 350 × 420 mm

Separate Control Unit

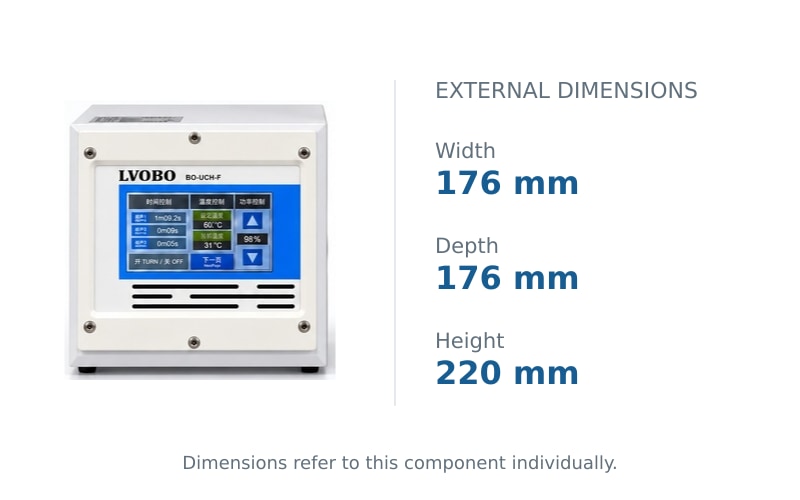

Separate control unit external dimensions: width 176 mm, depth 176 mm, height 220 mm
External: 176 × 176 × 220 mm

Dimension order: width × depth × height.

Explore the BO-UCH-F Series

Other BO-UCH-F models are available for different ultrasonic power and processing-volume requirements.

Explore the BO-UCH-F Series →

Frequently Asked Questions

What processing range does the BO-UCH800F support?

The processing range is 5–800 mL with a suitable probe configuration matched to the sample and vessel.

What probe is supplied with the BO-UCH800F?

A Φ10 mm titanium alloy probe is supplied as standard.

What optional probe sizes are available for the BO-UCH800F?

Optional probe diameters are Φ3 / Φ6 / Φ8 / Φ10 / Φ12 / Φ16 mm.

Does the BO-UCH800F support continuous and pulse sonication?

Yes. It supports continuous, pulse and intermittent operation, with adjustable output and interval times.

Does the BO-UCH800F have temperature monitoring and an alarm?

Yes. Temperature Monitoring & Over-Temperature Alarm is provided. The alarm setting range is 0–99°C; an automatic alarm is triggered when the configured limit is reached.

Need Help Configuring the BO-UCH800F?

Share your sample type, sample volume, vessel dimensions and intended application. LVOBO can help recommend a suitable probe configuration for your laboratory workflow.
