BO-300DS Type Vibrating Screen Powder Machine Proveedores y fabricantes

BO-300DS type vibrating screen powder machine

The compact circular vibrating screening machine is a highly efficient and practical electric screening device. With its streamlined design and precise screening capabilities, it effectively filters out foreign objects and impurities while classifying materials, ensuring high product quality. Widely applicable to material processing needs across various industries, this equipment features an advanced vibration system that generates stable and optimal frequency. This drives rapid and uniform material movement across the screen, achieving efficient screening processes and effective separation of materials with different particle sizes. The screen boasts high precision, allowing customization of mesh sizes to meet specific requirements. This precise screening mechanism ensures consistent product quality by accurately separating materials within defined particle size specifications.

Número de artículo :
BO-300DS
Pedido (MOQ) :
One
Precio :
$:86
Origen del producto :
Fujian
Color :
Customizable
Puerto de embarque :
Xia men
Plazo de entrega :
7 days
Peso :
5kg
Pago :
T/T

CATEGORÍAS DE PRODUCTOS

Nuevos productos

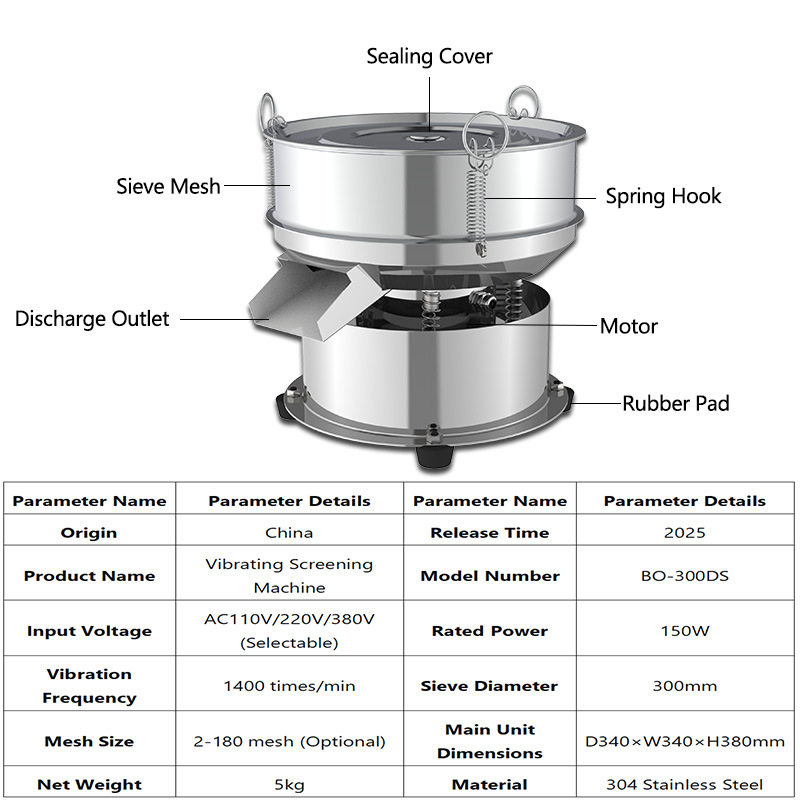

Parameter Name	Parameter details	Parameter name	Parameter details
Place of Origin	China	Release date	2025
Product Name	Vibrating screen machine	Product Model	BO-300DS
input voltage	AC110V/220V/380V optional	input power	150W
vibration frequency	1400 times/minute	Mesh diameter	300mm

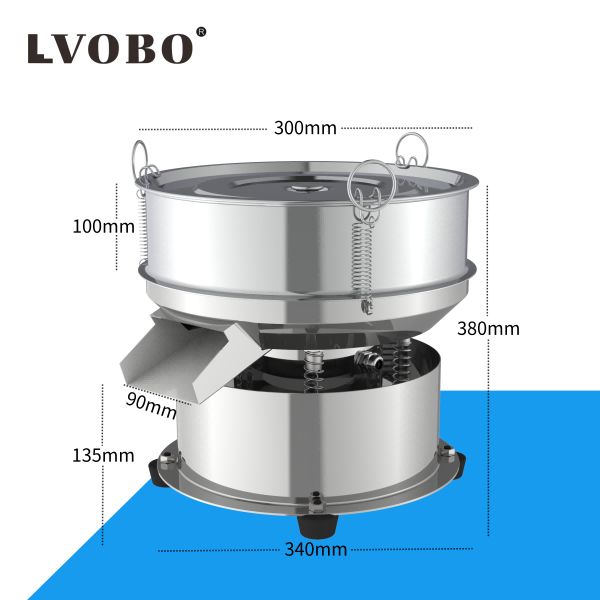

mesh count	Optional 8-200 mesh	host size	D340×W340×H380mm

Description of mesh number
Description of mesh number
Mesh number
Mesh number
The larger the number of mesh, the smaller the material particles: The smaller the mesh number, the larger the particle size of the material. The sieve size is the size of the screen frame through which the particles can pass. Expressed as the number of holes in a 1 inch (2.54cm) wide screen, .It is therefore called the number of eyes.







Screen mesh number reference
food	Grain flour 20-50 mesh	Chinese medicine powder 60-80 mesh
	Filter soy milk for 50-100 mesh	Thread powder 100-140 mesh
	Flour 40-60 mesh	Pearl powder 120-180 mesh
	Douhua douzhe filter 60-140 mesh
industrial	Spray plastic powder 120-140 mesh	Ceramic mud 50-60 mesh
	3D printing 316 powder 300-500 mesh	Cellulose 80-100 mesh
	Ceramic glaze material 60-80 mesh	Paint 100-200 mesh
	Lead powder 60-120 mesh	Beanstalk filter 140-180 mesh

Screen size and mesh comparison table
Mesh number	Aperture (mm)	Mesh number	Aperture (mm)	Mesh number	Aperture (mm)
2mesh	12.5	45mesh	0.4	220mesh	0.065
3mesh	8	50mesh	0.355	240mesh	0.063
4mesh	6	55mesh	0.315	250mesh	0.061
5mesh	5	60mesh	0.28	280mesh	0.055
6mesh	4	65mesh	0.25	300mesh	0.05
8mesh	3	70mesh	0.224	320mesh	0.045
10mesh	2	75mesh	0.2	325mesh	0.043
12mesh	1.6	80mesh	0.18	340mesh	0.041
14mesh	1.43	90mesh	0.16	360mesh	0.04
16mesh	1.25	100mesh	0.154	400mesh	0.0385
18mesh	1	110mesh	0.15	500mesh	0.0308
20mesh	0.9	120mesh	0.125	600mesh	0.026
24mesh	0.8	130mesh	0.112	800mesh	0.022
26mesh	0.71	140mesh	0.105	900mesh	0.02
28mesh	0.68	150mesh	0.1	1000mesh	0.015
30mesh	0.6	160mesh	0.096	1800mesh	0.01
32mesh	0.58	180mesh	0.09	2000mesh	0.008
35mesh	0.5	190mesh	0.08	2300mesh	0.005
40mesh	0.45	200mesh	0.074	2800mesh	0.003
