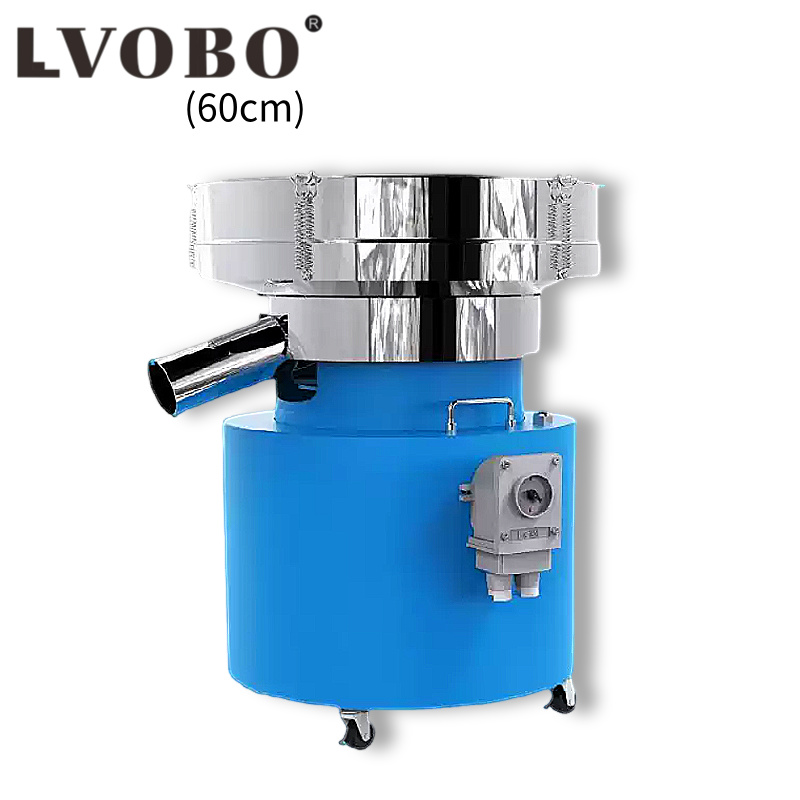

Explosion-proof powder screen (Φ600mm)

Small Circular Vibrating Screen Machine is an efficient and practical electric screening equipment. Its compact circular design and accurate screening ability enable it to efficiently screen out foreign bodies, filter impurities, and grade materials, thus ensuring the high quality of products. It is widely used to meet various material - processing requirements in industries. Equipped with an advanced vibration system, it can generate stable and appropriate vibration frequencies, facilitating the quick and even movement of materials on the screening network, achieving an efficient screening process, and effectively separating materials of different particle sizes. The screen network features high accuracy and can be customized with different pore sizes according to specific needs, enabling the accurate selection of materials meeting specific particle - size requirements and ensuring product - quality consistency.

Número de artículo :
BO-600BD
Pedido (MOQ) :
1PCS
Precio :
482
Origen del producto :
China
Color :
customizable
Puerto de embarque :
xia men
Plazo de entrega :
30 Days
Peso :
43kg
Pago :
T/T

CATEGORÍAS DE PRODUCTOS

Nuevos productos

The parameter name	Parameter details	The parameter name	Parameter details
Manufacturing ground	China	Time to market	In 2022
Product name	sifting machine	Product model	BO-600BD
Input voltage	AC110V / 220V / 380V is optional	Interiorinput power	750W
Shake frequency	And 1,400 beats / min	Screen diameter	600mm
Sieve mesh number	Optional 8-200 entries	Host size	D620×W690×H850mm

Description of mesh number
Description of mesh number
Mesh number
Mesh number
The larger the number of mesh, the smaller the material particles: The smaller the mesh number, the larger the particle size of the material. The sieve size is the size of the screen frame through which the particles can pass. Expressed as the number of holes in a 1 inch (2.54cm) wide screen, .It is therefore called the number of eyes.







Screen mesh number reference
food	Grain flour 20-50 mesh	Chinese medicine powder 60-80 mesh
	Filter soy milk for 50-100 mesh	Thread powder 100-140 mesh
	Flour 40-60 mesh	Pearl powder 120-180 mesh
	Douhua douzhe filter 60-140 mesh
industrial	Spray plastic powder 120-140 mesh	Ceramic mud 50-60 mesh
	3D printing 316 powder 300-500 mesh	Cellulose 80-100 mesh
	Ceramic glaze material 60-80 mesh	Paint 100-200 mesh
	Lead powder 60-120 mesh	Beanstalk filter 140-180 mesh

Screen size and mesh comparison table
Mesh number	Aperture (mm)	Mesh number	Aperture (mm)	Mesh number	Aperture (mm)
2mesh	12.5	45mesh	0.4	220mesh	0.065
3mesh	8	50mesh	0.355	240mesh	0.063
4mesh	6	55mesh	0.315	250mesh	0.061
5mesh	5	60mesh	0.28	280mesh	0.055
6mesh	4	65mesh	0.25	300mesh	0.05
8mesh	3	70mesh	0.224	320mesh	0.045
10mesh	2	75mesh	0.2	325mesh	0.043
12mesh	1.6	80mesh	0.18	340mesh	0.041
14mesh	1.43	90mesh	0.16	360mesh	0.04
16mesh	1.25	100mesh	0.154	400mesh	0.0385
18mesh	1	110mesh	0.15	500mesh	0.0308
20mesh	0.9	120mesh	0.125	600mesh	0.026
24mesh	0.8	130mesh	0.112	800mesh	0.022
26mesh	0.71	140mesh	0.105	900mesh	0.02
28mesh	0.68	150mesh	0.1	1000mesh	0.015
30mesh	0.6	160mesh	0.096	1800mesh	0.01
32mesh	0.58	180mesh	0.09	2000mesh	0.008
35mesh	0.5	190mesh	0.08	2300mesh	0.005
40mesh	0.45	200mesh	0.074	2800mesh	0.003
