LVBO BO-DFY Low Temperature Thermostatic Magnetic Stirring Reaction Bath with Internal External Circulation

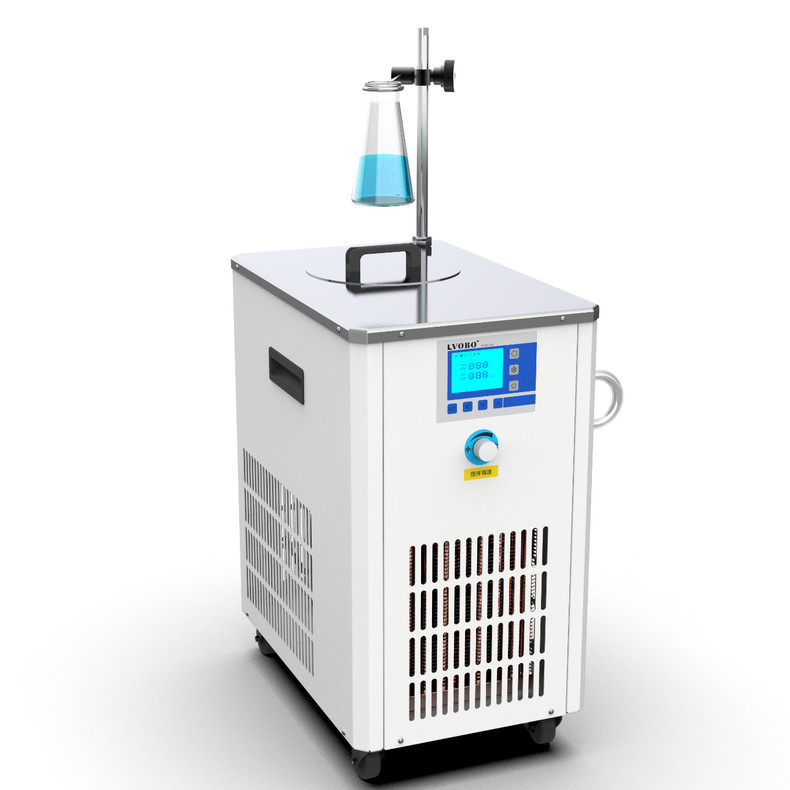

BO-DFY laboratory reaction bath with optional lifting support and beaker holder

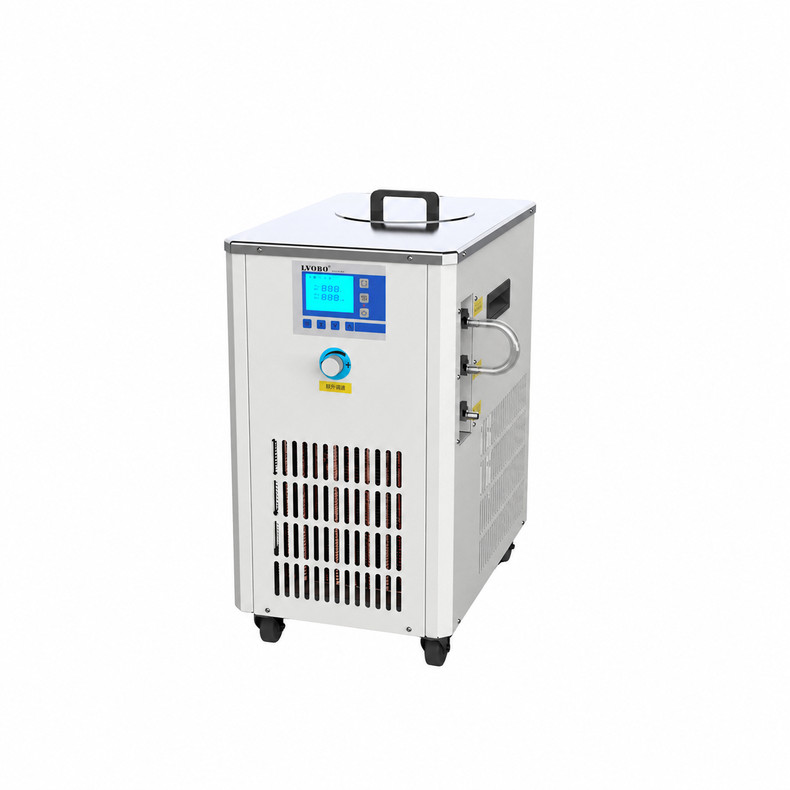

Front three-quarter view of BO-DFY magnetic stirring bath with LCD control panel

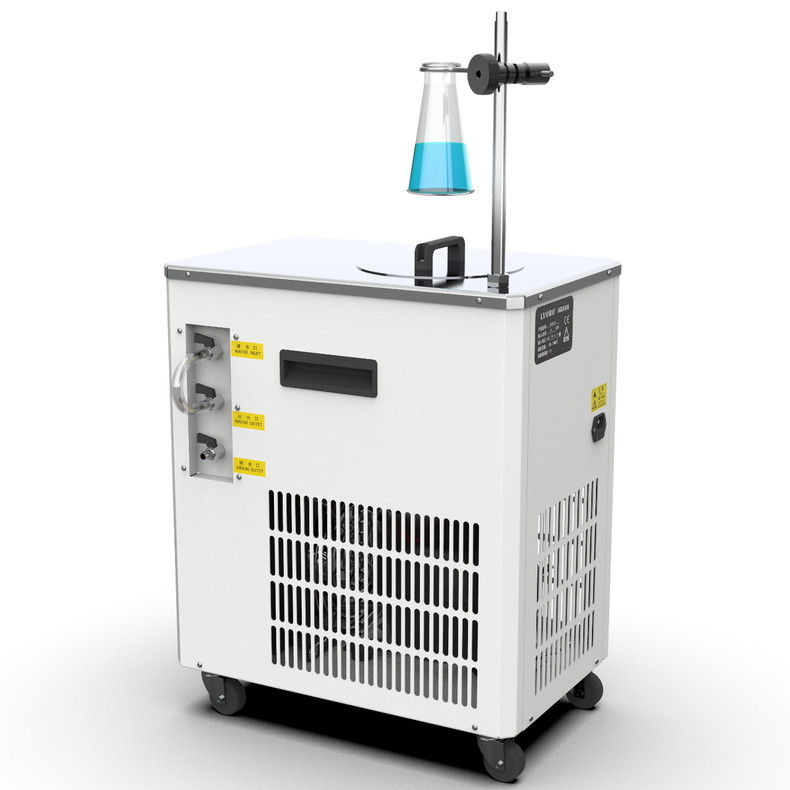

Rear three-quarter view of BO-DFY reaction bath with ventilation panels and caster wheels

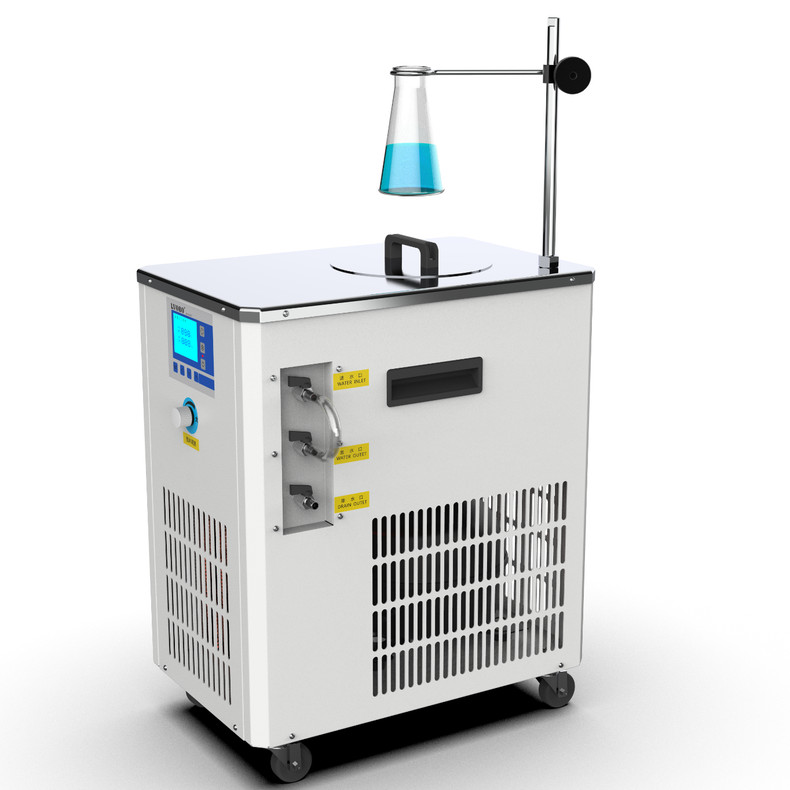

Side view of BO-DFY thermostatic reaction bath showing circulation ports and cabinet handle
LVBO BO-DFY low temperature magnetic stirring reaction bath on a white background

LVBO BO-DFY Low Temperature Thermostatic Magnetic Stirring Reaction Bath with Internal External Circulation

The LVBO BO-DFY Low-Temperature Thermostatic Magnetic Stirring Reaction Bath combines controlled heating and cooling, magnetic stirring, and internal/external fluid circulation in one laboratory system. It is designed for research, material development, pharmaceutical R&D, chemical laboratories, and quality-control teams that need stable temperature conditions without adding a separate shaft-driven stirrer. PID control supports ±0.1°C temperature fluctuation under specified operating conditions, while the stainless-steel inner bath and LCD interface simplify daily use. Multiple capacities and model-dependent temperature ranges help distributors and end users match the equipment to different sample loads. Cooling capacity is adjustable within the listed range. Over-temperature protection, alarm, and automatic power cut-off support safer operation. Before ordering, verify the chosen fluid, voltage, process load, vessel size, and temperature requirement.

  • Número de artículo :

    BO-DYF5/10

  • Pedido (MOQ) :

    1

  • Precio :

    USD610

  • Origen del producto :

    China

  • Color :

    White

  • Puerto de embarque :

    Xia Men

  • Plazo de entrega :

    7days

  • Peso :

    10kg

  • Pago :

    T/T
CONSULTA AHORA

Stable Temperature Control and Magnetic Stirring in One Bath

Match cooling, heating, stirring, and circulation to the operating conditions of your laboratory process.

Coordinate Temperature and Mixing

Running separate temperature-control and stirring equipment can complicate installation and process matching. The BO-DFY combines controlled heating and refrigeration with contact-free magnetic stirring. Its stainless-steel inner bath supports laboratory workflows that require uniform sample conditions and easier cleaning.

BO-DFY heating and cooling control overview for stable laboratory temperature regulation

Clear Control for Daily Laboratory Work

The bright LCD panel displays operating information, while the front controls allow temperature and magnetic stirring adjustments. High-precision sensing supports PID regulation. Over-temperature protection can trigger an alarm and automatically cut power when protection conditions are reached.

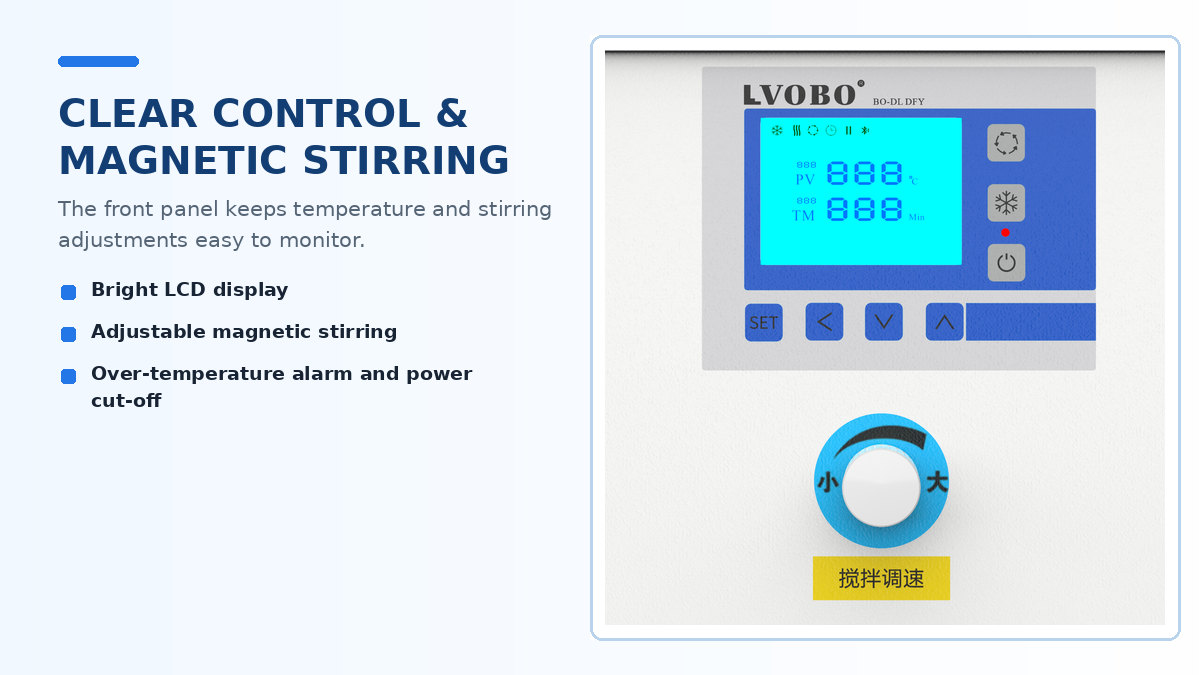

BO-DFY LCD controller and adjustable magnetic stirring speed knob close-up

Refrigeration and Circulation Structure

A fully enclosed compressor provides refrigeration in a compact cabinet. Internal circulation promotes bath uniformity, and external circulation supplies temperature-controlled fluid to compatible laboratory equipment. Use a fluid suitable for the chosen temperature; compatibility should be verified during model selection.

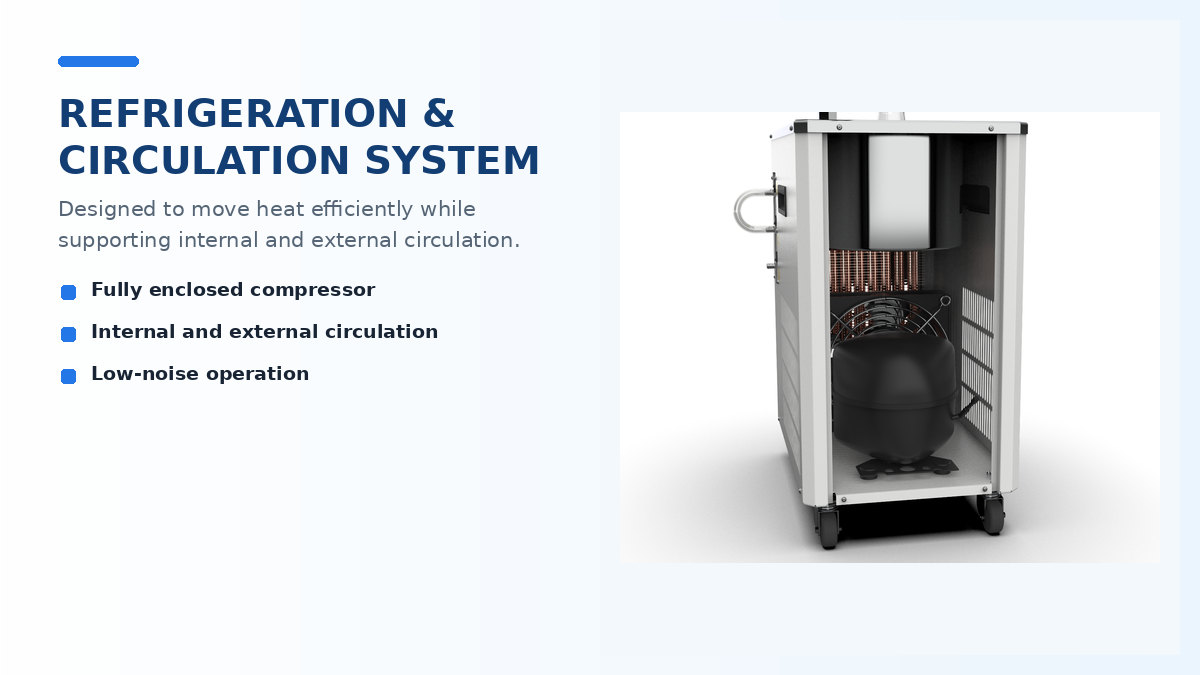

Internal refrigeration compressor and circulation structure of BO-DFY reaction bath

Technical Specifications

Temperature ranges are no-load adjustment ranges. Cooling capacity values show the adjustable operating range.

Model Bath Capacity
(L)		 Temperature Range
No Load (°C)		 Cooling Capacity
Adjustable (W)		 Temperature
Fluctuation		 Power Supply Circulation Flow Pump Head
BO-DFY5/10 5 -10 to 99 1248-319 ±0.1°C 220 V ±10%
50 Hz		 20 L/min 4-6 m
BO-DFY5/20 5 -20 to 99 1248-319
BO-DFY5/25 5 -25 to 99 1814-447
BO-DFY5/30 5 -30 to 99 2653-627
BO-DFY5/40 5 -40 to 99 1956-602
BO-DFY5/60 5 -60 to 99 1956-330
BO-DFY5/80 5 -80 to 99 1956-180
BO-DFY5/120 5 -120 to 99 3808-160
BO-DFY10/10 10 -12 to 98 1825-820 ±0.1°C 220 V ±10%
50 Hz		 30 L/min 4-6 m
BO-DFY10/20 10 -23 to 98 2100-780
BO-DFY10/25 10 -26 to 98 2170-780
BO-DFY10/30 10 -32 to 98 2436-820
BO-DFY10/40 10 -40 to 98 2548-980
BO-DFY10/60 10 -63 to 98 2732-310
BO-DFY10/80 10 -83 to 98 2900-230
BO-DFY10/120 10 -120 to 98 2982-200
BO-DFY20/20 20 -23 to 98 3126-950 ±0.1°C 220 V ±10%
50 Hz		 30 L/min 4-6 m
BO-DFY20/30 20 -32 to 98 3237-1023
BO-DFY20/40 20 -40 to 98 3635-980
BO-DFY20/60 20 -63 to 98 4120-510
BO-DFY20/80 20 -83 to 98 4530-360
BO-DFY20/120 20 -120 to 98 4889-270
BO-DFY30/20 30 -23 to 98 3780-1150 ±0.1°C 220 V ±10%
50 Hz		 30 L/min 4-6 m
BO-DFY30/30 30 -32 to 98 3960-1200
BO-DFY30/40 30 -40 to 98 4080-1270
BO-DFY30/60 30 -63 to 98 4330-680
BO-DFY30/80 30 -83 to 98 4679-422
BO-DFY30/120 30 -120 to 98 4968-330
BO-DFY40/20 40 -23 to 98 4322-1280 ±0.1°C 380 V ±10%
50 Hz		 70 L/min 6-8 m
BO-DFY40/30 40 -32 to 98 4390-1300
BO-DFY40/40 40 -40 to 98 4510-1320
BO-DFY40/60 40 -63 to 98 4690-980

Select the Model Around the Real Process Load

Before ordering, match the lowest required temperature, bath capacity, sample heat load, power supply, circulation medium, and vessel dimensions. An optional lifting support can be used with a beaker to adjust the working height. Confirm the support and beaker dimensions as part of the selected configuration.

BO-DFY model selection checklist with optional lifting support for beaker use

Typical Laboratory Uses

Suitable for controlled-temperature reaction work, sample conditioning, material development, process research, and quality-control experiments in universities, research institutes, chemical laboratories, pharmaceutical R&D facilities, and industrial laboratories.

Frequently Asked Questions

Is the lifting support included?

The lifting support is optional and is intended for use with a beaker. Confirm whether it is included in the quoted configuration.

How should the circulation medium be selected?

Choose the medium according to the required operating temperature and confirm compatibility before ordering.

What should be checked before connecting power?

Verify that the selected model and supply voltage match the installation site. The confirmed models in the table use either 220 V or 380 V, depending on configuration.
