Multifunctional 200/300 Standard Laboratory Intelligent Touchscreen Vibrating Sieve

Quality Inspection Laboratory Screening Machinery
Intelligent Particle Grading Screening Machine
standard testing sieve
Chemical research lab sieve
Sample preparation lab sieve

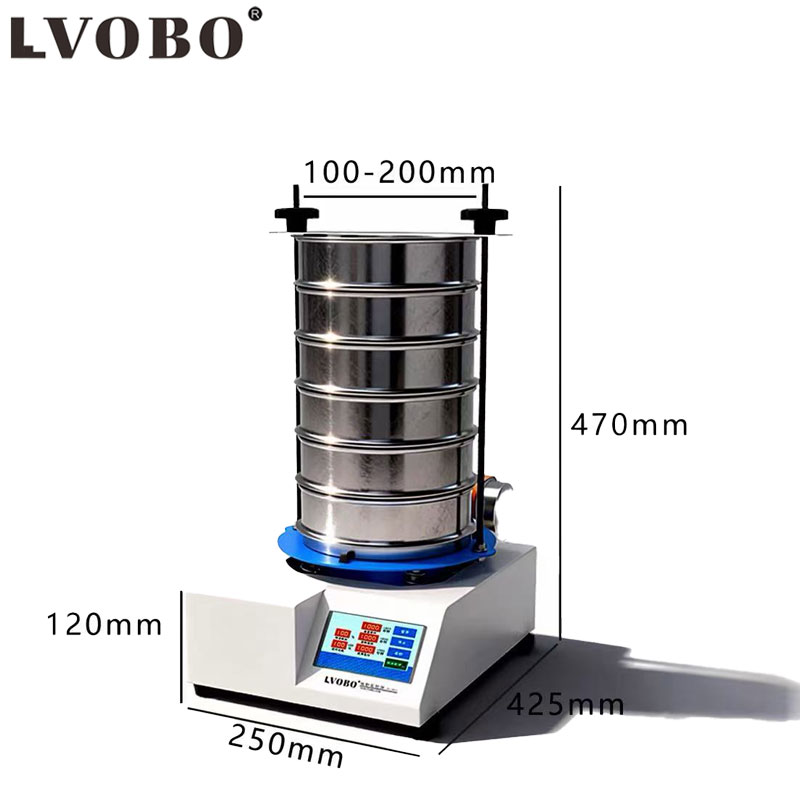

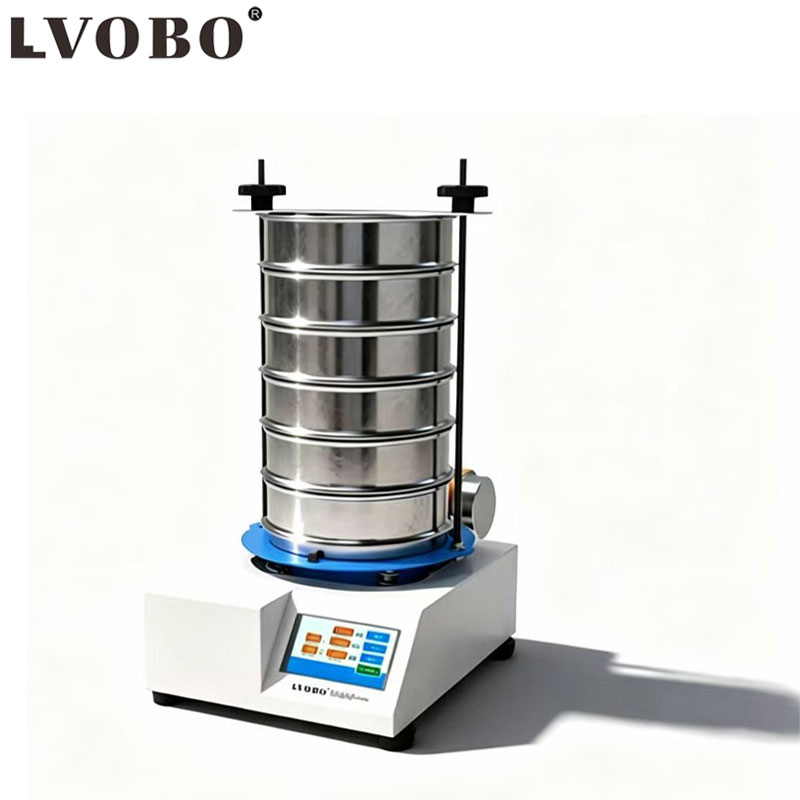

Multifunctional 200/300 Standard Laboratory Intelligent Touchscreen Vibrating Sieve

The experimental screening machine is a device used for screening, separating and classifying samples in alaboratory environment. It is widely used in chemistry, biology, medicine, food science and other fields, helpingresearchers to quickly and accurately separate samples with different particle sizes and characteristics.

  • Número de artículo :

    BO-200SY

  • Pedido (MOQ) :

    1PCS

  • Precio :

    294$

  • Origen del producto :

    China

  • Color :

    customizable

  • Puerto de embarque :

    xia men

  • Plazo de entrega :

    7 Days

  • Peso :

    15Kg

  • Pago :

    T/T
CONSULTA AHORA

1. Particle Size Screening: It screens according to the particle size of the sample and supports a variety of screen specifications.

2. Automatic Separation: It automatically separates the samples into components of different particle sizes.

3. Timing Operation: The screening time can be set to achieve automatic operation.

4. Vibration Frequency Adjustment: It supports the adjustment of vibration frequency to meet the screening needs of different samples.

5. Noise Control: It has a low - noise design, making it suitable for the laboratory environment.



6. Mesh specifications: diameter 300mm, mesh aperture can be flexibly selected within the range of 0.1mm-5mm to meet the screening requirements of different material particle sizes.

7. Rotation frequency: range 0-108 times/minute,

3. Processing capacity: Depending on the type, particle size, and screening requirements of the materials, the processing capacity may vary between 5-100 kilograms per hour.

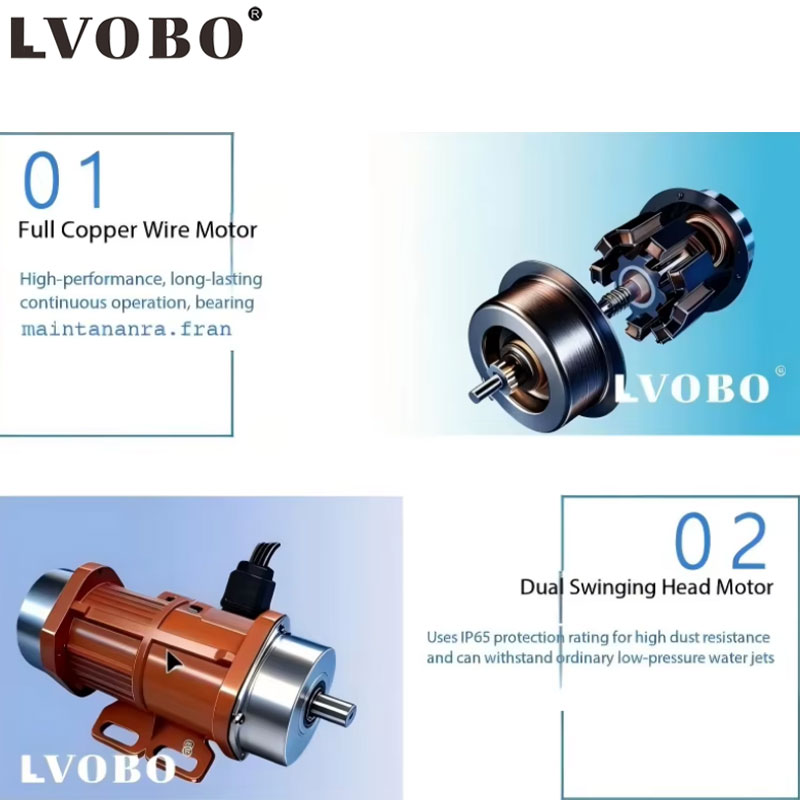

8. Motor power: The power of the vibration motor is 0.25kW, ensuring stable and sufficient power for the vibrating screen while also considering energy-saving needs.

--------------占位---------------

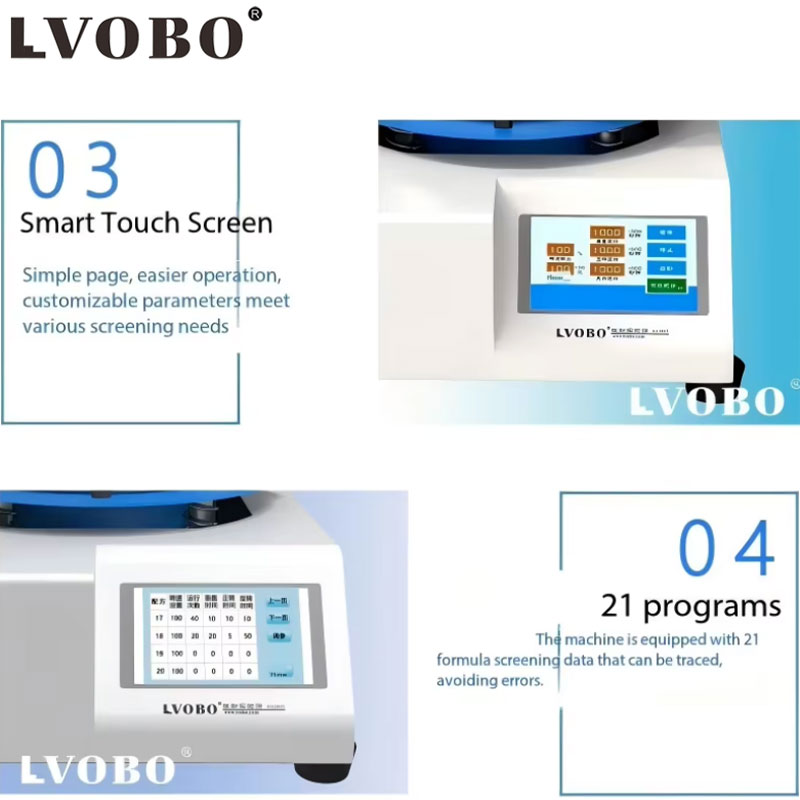

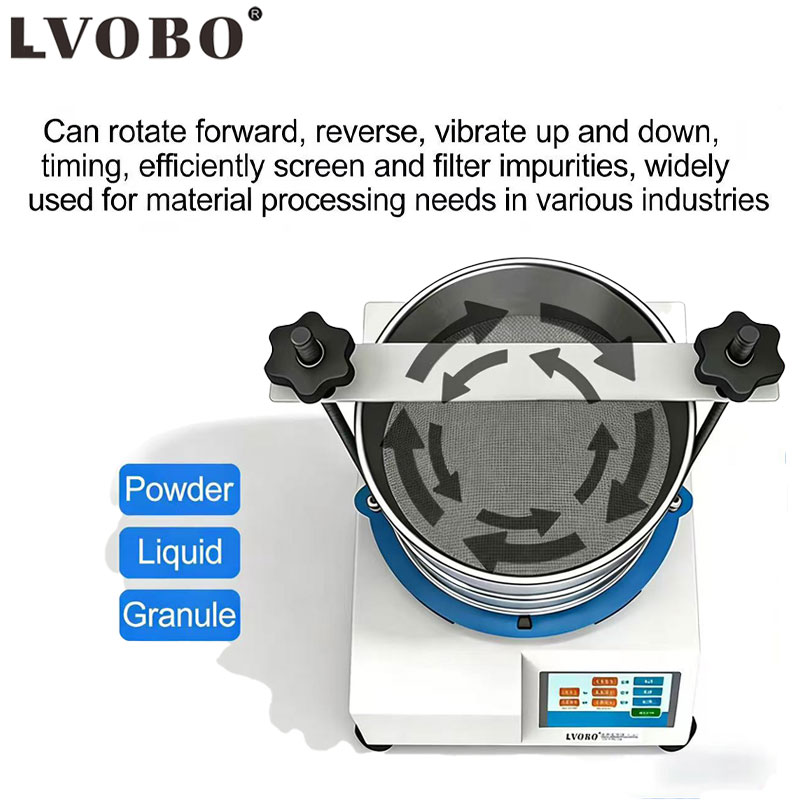

9.Microcomputer Intelligent Control enables arbitrary setting of

the forward, reverse, up and down vibration time, as well as

the forward, reverse, and vibration frequency.

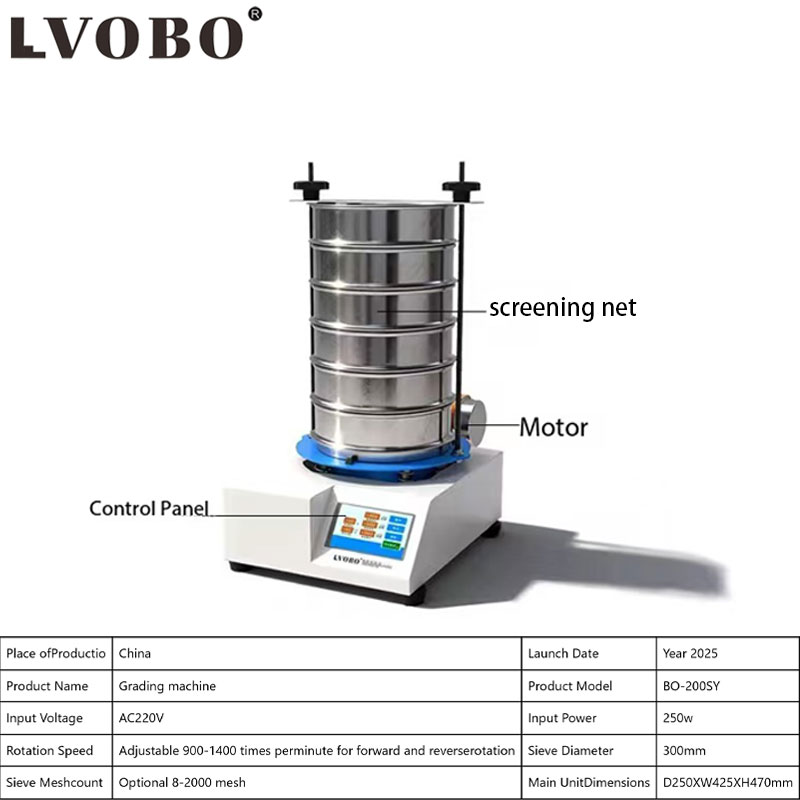

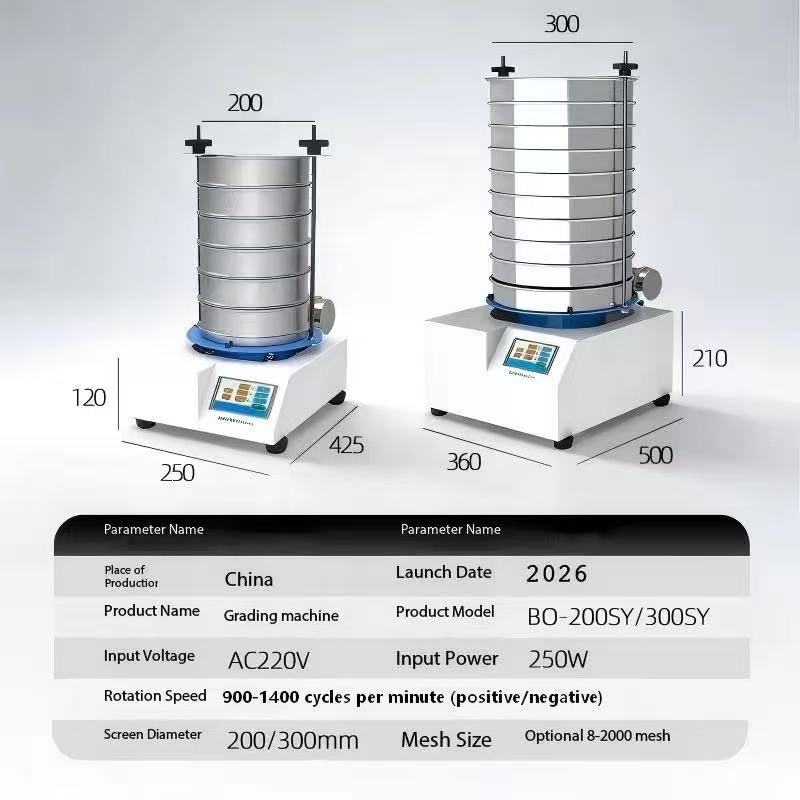

Technical Parameter:
The parameter name Parameter details The parameter name Parameter details
Manufacturing ground China Time to market In2026
Product name Graded screening machine Product model Bo-200/300 sy
Input voltage AC110V / 220V / 380V is optional Interiorinput power 25w
Shake frequency 0-108 times/min adjustable Screen diameter 300mm
Sieve mesh number Optional 8-200 entries Host size D400×W450×H285mm

Description of mesh number

Mesh number

The larger the number of mesh, the smaller the material particles:
The smaller the mesh number, the larger the particle size of the material.
The sieve size is the size of the screen frame through which the particles can pass.
Expressed as the number of holes in a 1 inch (2.54cm) wide screen,
.It is therefore called the number of eyes.

Screen mesh number reference

food

Grain flour 20-50 mesh

Chinese medicine powder 60-80 mesh

Filter soy milk for 50-100 mesh

Thread powder 100-140 mesh

Flour 40-60 mesh

Pearl powder 120-180 mesh

Douhua douzhe filter 60-140 mesh



industrial

Spray plastic powder 120-140 mesh

Ceramic mud 50-60 mesh

3D printing 316 powder 300-500 mesh

Cellulose 80-100 mesh

Ceramic glaze material 60-80 mesh

Paint 100-200 mesh

Lead powder 60-120 mesh

Beanstalk filter 140-180 mesh



Screen size and mesh comparison table

Mesh number

Aperture (mm)

Mesh number

Aperture (mm)

Mesh number

Aperture (mm)

2mesh

12.5

45mesh

0.4

220mesh

0.065

3mesh

8

50mesh

0.355

240mesh

0.063

4mesh

6

55mesh

0.315

250mesh

0.061

5mesh

5

60mesh

0.28

280mesh

0.055

6mesh

4

65mesh

0.25

300mesh

0.05

8mesh

3

70mesh

0.224

320mesh

0.045

10mesh

2

75mesh

0.2

325mesh

0.043

12mesh

1.6

80mesh

0.18

340mesh

0.041

14mesh

1.43

90mesh

0.16

360mesh

0.04

16mesh

1.25

100mesh

0.154

400mesh

0.0385

18mesh

1

110mesh

0.15

500mesh

0.0308

20mesh

0.9

120mesh

0.125

600mesh

0.026

24mesh

0.8

130mesh

0.112

800mesh

0.022

26mesh

0.71

140mesh

0.105

900mesh

0.02

28mesh

0.68

150mesh

0.1

1000mesh

0.015

30mesh

0.6

160mesh

0.096

1800mesh

0.01

32mesh

0.58

180mesh

0.09

2000mesh

0.008

35mesh

0.5

190mesh

0.08

2300mesh

0.005

40mesh

0.45

200mesh

0.074

2800mesh

0.003
